Bone Density Testing Information for Professionals

Clinical Practice Guidelines for the Diagnosis and Management of Osteoporosis - Winnipeg Regional Health Authority
This document, based on the 2010 Clinical Practice Guidelines for the Diagnosis and Management of Osteoporosis in Canada, is designed to provide an evidence-based process to identify and treat osteoporosis.



Definition of Osteoporosis

The World Health Organization defines osteoporosis as "...a systemic skeletal disease characterized by low bone mass and microarchitectural deterioration of bone tissue, with a consequent increase in bone fragility and susceptibility to fracture".

For comparing rates of osteoporosis in different populations the following categorization was proposed by the WHO in 1994 based upon bone density expressed as a T-score (the number of standard deviations above or below average peak young-adult bone density):

T score WHO Category Clinical Interpretation
<1 SD below average peak BMD Normal Non-osteoporotic
Between 1 and 2.5 SD below average peak BMD Low bone density (osteopenia) Non-osteoporotic
>2.5 SD below average peak BMD  Osteoporosis Osteoporosis

The WHO categorization is only applicable after menopause in women or age 50 in men.  In premenopausal women, younger men and children Z-scores (based upon age- and sex-match comparisons) are reported.

^ top of page


Clinical Role of Bone Density Measurement

A distinction is made between diagnostic classification and the use of bone mineral density (BMD) for fracture risk assessment. Bone density is best thought of as risk factor for fracture rather than a diagnostic threshold.  Understanding bone density as a risk factor means interpreting the value in light of other key information, such as age and previous fracture.  A T score of -1.8 does not predict the same risk for a fracture in a 45 year old as it does in a 69 year old. The T-score captures only one aspect of fracture risk.  In evaluating fracture risk, bone density should be considered in conjunction with other clinical risk factors for fracture. Important independent risk factors include low body weight, history of postmenopausal fracture, family history of fracture and poor neuromuscular function. Intervention should be based on fracture risk as determined by a combined assessment of BMD, age and other clinical risk factors for fracture. Treatment decisions should be based on fracture risk, not BMD alone.

Effective September 1st 2012, estimated absolute fracture risk (percent chance of having a major osteoporotic fracture over the next ten years) will be used to categorize fracture risk using the Canadian version of the World Health Organization (WHO) fracture risk assessment tool, called “FRAX” and can be accessed at: WHO Fracture Risk Assessment Tool for Canada (FRAX).  This tool estimates a person’s 10-year fracture risk from the input of several risk factors: age, sex, body mass index, prolonged glucocorticoid use, current smoking, high alcohol intake, parental hip fracture, rheumatoid arthritis, prior fragility fracture and (optionally) femoral neck BMD.  Although FRAX uses the femoral neck as the primary site for fracture risk estimation, the total hip site is still reported as the preferred site for hip BMD monitoring due to better precision.  In Manitoba, we also modify the output of the FRAX tool with an adjustment for lumbar spine BMD (when lumbar spine T-score is 1 SD or more below the femoral neck T-score) and glucocorticoid dose (daily prednisone low, moderate, high).  "Fracture risk" over the next 10 years is categorized using definitions similar to risk categories for cardiovascular disease:

Fracture Risk Definition
Low risk <10% chance of an osteoporotic fracture
Medium risk 10 - 19% chance of an osteoporotic fracture
High risk > 20% chance of an osteoporotic fracture

The Fracture Risk category above is modified in accordance with the “2010 Clinical practice guidelines for the diagnosis and management of osteoporosis in Canada”:

  • Individuals with a diagnosis of osteoporosis (minimum T-score -2.5 or lower) are considered to be at the very least moderate risk;
  • Individuals over age 50 years with a fragility fracture of the hip or vertebra, or those who have had more than 1 fragility fracture, are considered to be high risk for future fractures irrespective of BMD and fracture risk from FRAX.

Which patients need treatment?

Group 1: Women and men over age 50 years, if reported to be:

  • High risk: Pharmacologic therapy should be offered;
  • Moderate risk: This group requires a careful evaluation to identify vertebral fractures (e.g., spine x-rays) or additional clinical risk factors which may contribute to a decision to offer pharmacologic therapy;
  • Low risk: These individuals usually do not require pharmacologic therapy. In general, lifestyle measures are sufficient for those at low fracture risk who do not have additional risk factors for rapid BMD loss.

Group 2: Women and men under age 50 years:

  • Treatment considerations are complex and often benefit from consultation with a specialist.

Does treatment affect the risk category?

  • When taken correctly, first line treatments for osteoporosis significantly reduce vertebral and non-vertebral fracture risk even when BMD values are unchanged.  The FRAX tool does not take into account the risk reduction associated with effective pharmacologic therapy, and therefore the risk category will not change. Thus for a patient who is being treated,  the reported risk category reflects the fracture risk that would be expected for a hypothetical patient who is identical to the one you requested a BMD on, but who is treatment-naıve.

Key points when reviewing BMD results:

  • T-scores should not be used as a "stand-alone" result to guide management.  Many factors affect fracture risk other than BMD (older age and previous fragility fractures are the most important).  Patients can still be at high risk of fracturing with bones in the low bone density (osteopenic) or normal range (now grouped together as "non-osteoporotic").  Alternately, patients can have a relatively low risk of fracturing even with bones measured in the osteoporotic range (especially if they are relatively young and do not have other risk factors).
  • Vertebral Fracture Assessment (VFA) is a procedure on bone densitometers that acquires a low dose lateral spine image for the purpose of vertebral fracture recognition.  Vertebral fractures are associated with a five-fold increase in the risk of future fractures and are automatically considered “High Risk”. VFA will be done automatically according to predefined criteria and does not need to be ordered.  VFA results are integrated into the BMD and Fracture Risk report.

^ top of page

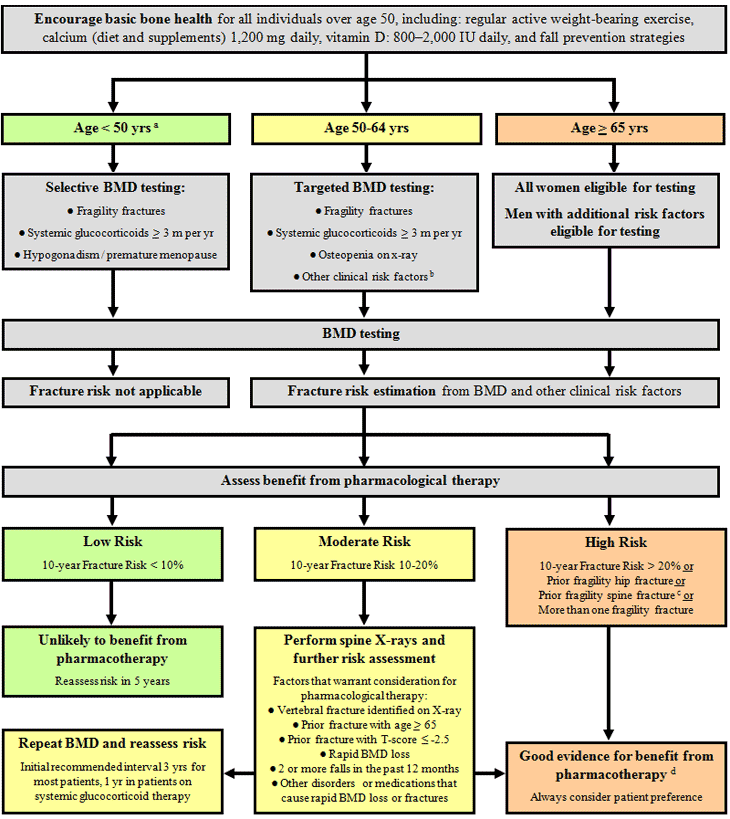

University of Manitoba Osteoporosis Flowchart

Flowchart

Footnotes:

a BMD testing in individuals younger than age 50 can be considered when there are significant medical conditions or medications associated with osteoporosis.  Treatment guidelines are not well defined and requires an individualized approach, bearing in mind that risk of fracture is usually low, while long term safety and efficacy of drug therapy is not well established.

b Other high-risk medication use (e.g., aromatase inhibitors for breast cancer, androgen deprivation for prostate cancer), parental hip fracture, high alcohol intake or current smoking, low body weight (< 60 kg) or major weight loss (>10% of weight at age 25)

c Definite non-traumatic vertebral fractures (>25% height loss with end-plate deformity) are associated with a 5-fold increased risk for recurrent vertebral fractures. Equivocal spine fractures are not strong indicators of osteoporosis.

d The major objective of follow-up testing is to identify individuals with continued BMD loss. The anti-fracture effect of treatment is not explained from the small change in BMD. Stable BMD is consistent with successful treatment.

^ top of page


Anatomy of a Bone Density Report

INTERPRETATION

Fracture Risk: Moderate

Patient’s Risk:



Average Risk:

BMD Category:

9.3% 10-year risk of osteoporotic fracture

Risk factors included: age, sex, BMI, femoral neck T-score, spine T-score

15% 10-year fracture risk for an average 70 year old female

Osteoporotic

RESULTS





Femoral Neck Left

BMD =
T-Score =

0.920 g/cm2

-0.7

Total Hip Left

BMD =
T-Score =

Comparison:

0.921 g/cm2

-0.7

No change from previous (BMD 0.904 g/cm2 in March 2008) but this remains a significant increase from baseline (BMD 0.830 g/cm2 in July 2001).

Spine L1-3

BMD =
T-Score =

Comparison:

0.871 g/cm2

-2.5

No change from previous (BMD 0.834 g/cm2 in March 2008) with a significant increase from baseline (BMD 0.764 g/cm2 in July 2001).

VFA

No definite vertebral fractures are identified

COMMENTS

This patient's Fracture Risk is "Moderate" based upon an osteoporotic BMD category despite a lower calculated percent risk. Fracture risk reported above is for an untreated patient, and does not reflect the expected reduction in fracture risk from effective anti-resorptive therapy.

^ top of page


Explanation of a Bone Density Report

Fracture Risk:

Fracture Risk is based on the patient's 10-year risk of major osteoporotic fracture (low <10%, moderate 10-19%, or high >20%) from WHO Fracture Risk Assessment Tool for Canada (FRAX) (see above).

Patient's Risk is estimated from age, sex, body mass index, prolonged glucocorticoid use, current smoking, high alcohol intake, parental hip fracture, rheumatoid arthritis, prior fragility fracture and femoral neck BMD.

Risk factors included is the list of positive risk factors used in the FRAX calculation. (Note: Lumbar spine BMD contributes to the calculation when lumbar spine T-score is 1 SD or more below the femoral neck T-score. If femoral neck BMD cannot be measured then 10-year fracture risk is estimated without BMD from clinical risk factors alone.)

Average Risk is the 10-year osteoporotic fractur e risk for an average person of the same age and sex.



Note: Fracture Risk is not estimated in premenopausal women, men younger than age 50, or children.





BMD Category:

Defined from the BMD and age.

After menopause in women or age >50 in men: non-osteoporotic (minimum T-score above -2.5) or osteoporotic (minimum T-score -2.5 or lower).

Premenopausal women, men younger than age 50, and children: normal for age (Z-score above -2.0) or reduced for age (Z-score -2.0 or lower).
