Geological Survey Activity TrackerFlin Flon Belt and Kisseynew
Reed Lake Compilation and Geological MappingProject Status: Completed (2019)
|
Project Information
Principal investigators:
Simon Gagné
Partnered with:
--
Location:

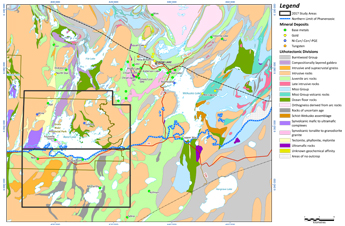

Reed Lake, parts of 63K09/ 63K10/ 63K15 and 63K16
Project Description
Main objectives:
The main objectives of this program are to provide additional geological constraints by completing inland traverses. The data will be combined with shoreline geological data acquired during the NATMAP project (1998). The project aims to provide a higher resolution geological map by extending the mapping inland. It will deliver better constraints on the spatial distribution of the various lithological units and enhance our knowledge of the stratigraphy and structural framework of the area which will in turn provide a better understanding of the mineral potential of the area. Effort will also focus on documenting and reviewing the setting of known lode-gold, magmatic Ni-Cu and VMS-type base metal mineralizations.
Methodology:

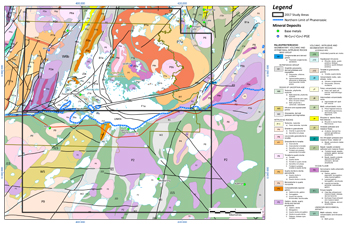

The project will include 1:20 000 scale bedrock geological mapping of areas of high interests (volcanic rocks, shear zones, etc.) to complement NATMAP shoreline geology. The geology of lower priority areas (e.g., plutons) will be interpreted from earlier mapping, geophysical data, visits of carefully selected key outcrops for groundtruthing and by lithogeochemical and Sm/Nd isotope analyses. Key exposures along the shoreline will also be revisited. In addition, detailed lithological and structural mapping will focus on known mineral occurrences. To complement geological fieldwork, focused lithogeochemistry, Sm-Nd isotopic analyses, as well as U/Pb geochronology will be obtained from key areas. Drill core from selected drill holes intersecting some of the key mineral deposits will be examined in detailed. Available airborne geophysical data will also be integrated to help with the map interpretation.
Benefits:
The new set of geological maps will provide better constraints on the distribution of units and increase our knowledge of the internal stratigraphy of the various packages of volcanic rocks from the area. Structural analysis and analytical techniques (whole-rock geochemistry, Sm/Nd isotopes and U-Pb dating) will help also help gaining a better understanding of the tectono-metamorphic evolution of the rocks from the Reed Lake area. The project will also provide a better knowledge of the mineral potential of the Reed Lake area and the factors controlling mineralization.
Completed outputs:
2016-2017
Gagné, S. 2016: Examination of exploration drillcore from the Reed Lake area, Flin Flon belt, west-central Manitoba (parts of NTS 63K7, 8, 9, 10); in Report of Activities 2016, Manitoba Growth, Enterprise and Trade, Manitoba Geological Survey, p. 63–73.
Gagné, S. 2016: New perspectives on the geology of the Reed Lake area; Manitoba Growth, Enterprise and Trade, Manitoba Geological Survey, Manitoba Mining and Minerals Convention 2016, Winnipeg, Manitoba, November 16–18, 2016, oral presentation.
Gagné, S. 2016: Towards a new geological framework for the Reed Lake area (parts of NTS 63K7, 8, 9, 10); Manitoba Growth, Enterprise and Trade, Manitoba Geological Survey, Manitoba Mining and Minerals Convention 2016, Winnipeg, Manitoba, November 16–18, 2016, poster presentation.
2015-2016
Gagné, S. 2015: Examination of exploration drillcore from the Reed Lake area, Flin Flon belt, west-central Manitoba (parts of NTS 63K9, 10): implications for the stratigraphy of the Fourmile Island assemblage and setting of VMS deposits; in Report of Activities 2015, Manitoba Mineral Resources, Manitoba Geological Survey, p. 38–51.
Gagné, S. and Anderson, S.D. 2015: Towards a better understanding of the geology of the Reed Lake area (part of NTS 63K10 and 63K11); Manitoba Mineral Resources, Manitoba Geological Survey, Manitoba Mining and Minerals Convention 2015, Winnipeg, Manitoba, November 18–20, 2015, poster presentation.
2014-2015
Gagné, S. and Anderson, S.D. 2014: Update on the geology and geochemistry of the west Reed Lake area, Flin Flon greenstone belt, west-central Manitoba (part of NTS 63K10); in Report of Activities 2014, Manitoba Mineral Resources, Manitoba Geological Survey, p. 77–93.
Gagné, S. and Anderson, S.D. 2014: Bedrock geology west of Reed Lake, Flin Flon greenstone belt, Manitoba (part of NTS 63K10); Manitoba Mineral Resources, Manitoba Geological Survey, Preliminary Map PMAP 2014-5, scale 1:20 000.
Gagné, S. and Anderson, S.D. 2014: Update on bedrock geology of the west Reed Lake area (part of NTS 63K10); Manitoba Mineral Resources, Manitoba Geological Survey, Manitoba Mining and Minerals Convention 2014, Winnipeg, Manitoba, November 19–21, 2014, poster presentation.
2013-2014
Gagné, S. 2013: Geological investigations in the Rail Lake–Sewell Lake area, Flin Flon–Snow Lake greenstone belt, west-central Manitoba (parts of NTS 63K10, 15); in Report of Activities 2013, Manitoba Mineral Resources, Manitoba Geological Survey, p. 95–105.
Gagné, S. 2013: Geology of the Rail Lake–Sewell Lake area, Flin Flon–Snow Lake greenstone belt, west-central Manitoba (parts of NTS 63K10, 15); Manitoba Mineral Resources, Manitoba Geological Survey, Preliminary Map PMAP2013-8, scale 1:10 000.
Gagné, S. 2013: Preliminary results of geological investigation in the Rail–Sewell Lake area, northwest Reed Lake (parts of NTS 63K15, 63K10); Manitoba Mineral Resources, Manitoba Geological Survey, Manitoba Mining and Minerals Convention 2013, Winnipeg, Manitoba, November 20–22, 2013, poster presentation.
