Commodity Summaries: Ilmenite and Magnetite
| Ilmenite and magnetite are found at Pipestone Lake, close to Cross Lake. Gossan Resources Limited (50%) and Cross Lake Mineral Exploration Inc. (50%) have outlined by drilling 243 million tonnes of mineralization containing 9.28% ilmenite, 23.6% magnetite and 0.28% vanadium pentoxide to a depth of 300 m, open at both ends. The mineralization is within the main central and disseminated zones of the 730 million tonne deposit, which averages 70.74 m (true width) and 6325 m in length. The companies have carried out the necessary mineralogical, milling and furnace work to prepare for the economic separation of the minerals from Pipestone Lake. Potential products would be titanium dioxide for paint and paper industries and magnetite and vanadium pentoxide for steel-making. Drilling by Gossan at Kiskitto Lake, 50 km to the southeast, penetrated a 100+ m wide zone of titanium-vanadium-iron mineralization. The zones, 2–4 km in length, carried 1-5% TiO2, with occasional 6–7 m wide intervals of 5–7% TiO2. Suggested References Assessment File 73001, Manitoba Economic Development, Investment, Trade and Natural Resources, Winnipeg Assessment File 73005, Manitoba Economic Development, Investment, Trade and Natural Resources, Winnipeg Assessment File 72915, Manitoba Economic Development, Investment, Trade and Natural Resources, Winnipeg Cameron, H.D.M. 1992: Pipestone Lake anorthosite complex: geology and studies of titanium-vanadium mineralization; Manitoba Energy and Mines, Geological Services, Open File Report OF92-1, 134 p. Dresler, W. 1995: A metallurgical evaluation of the extraction of titanium, vanadium and iron from main central zone of the Pipestone Lake ilmenite-magnetite deposit in Manitoba: final report; Energy, Mines and Resources Canada, 25 p. Jobin-Bevans, L.S., Peck, D.C., Cameron, H.D.M. and McDonald, J.P. 1995: Geology and oxide mineral occurrences of the central and eastern portions of the Pipestone Lake anorthosite complex (parts of NTS 63I/5 and I/12); in Report of Activities 1995, Manitoba Energy and Mines, Geological Services, p. 74–83. Jobin-Bevans, L.S. 1997: Geology, mineral chemistry and petrogenesis of the Pipestone Lake anorthosite complex; M.Sc. thesis, University of Manitoba, 400 p. scale 1:2000 3300. Peck, D.C., Cameron, H.D.M. and Corkery, M.T. 1994: Geological environments and characteristics of Ti-V-Fe oxide mineralization in the western part of the Pipestone Lake anorthosite complex; in Report of Activities 1994, Manitoba Energy and Mines, Geological Services, p. 118–129. |

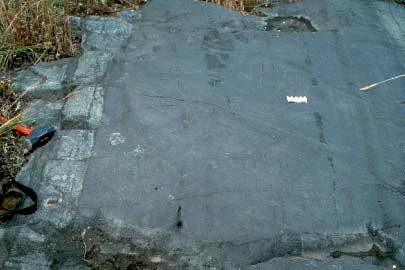

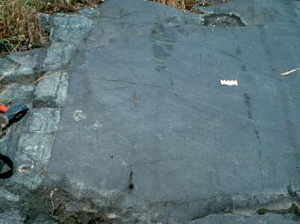

Ilmenite and Magnetite outcrop.

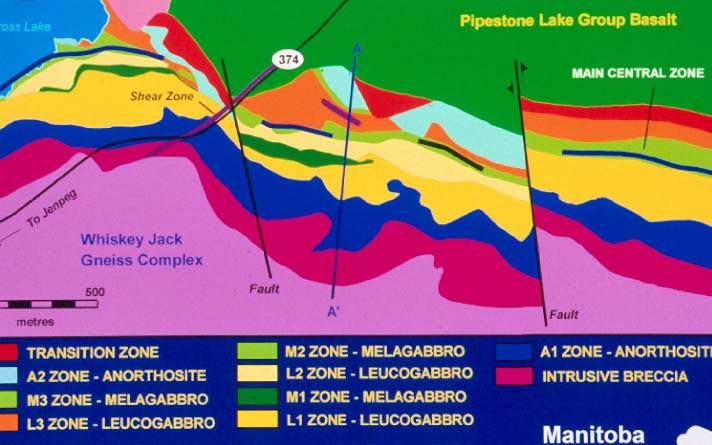

Pipestone map.
|
